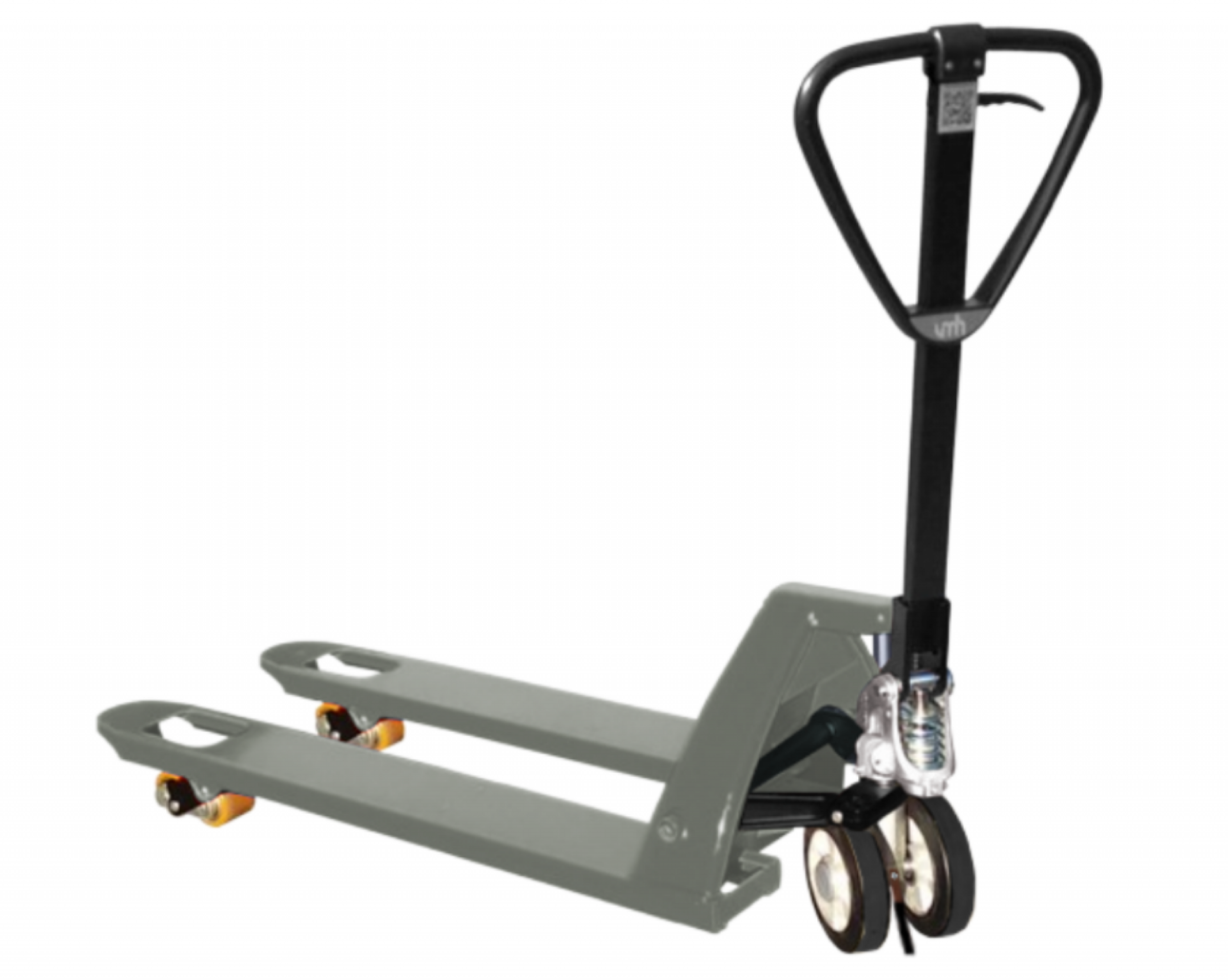

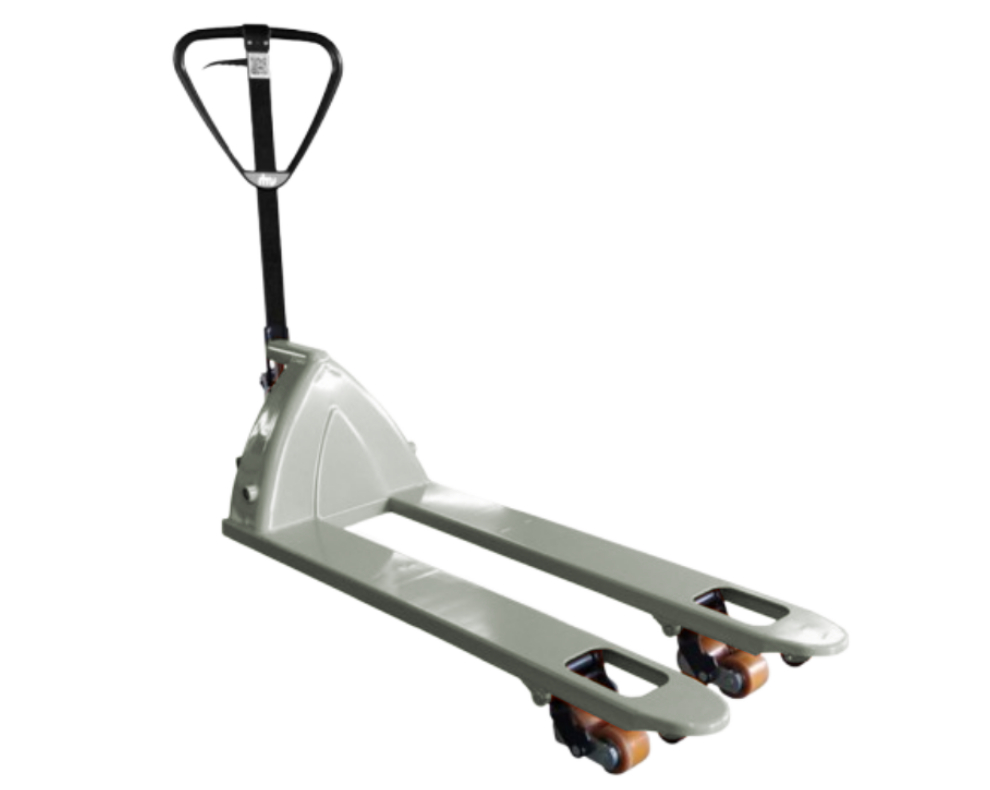

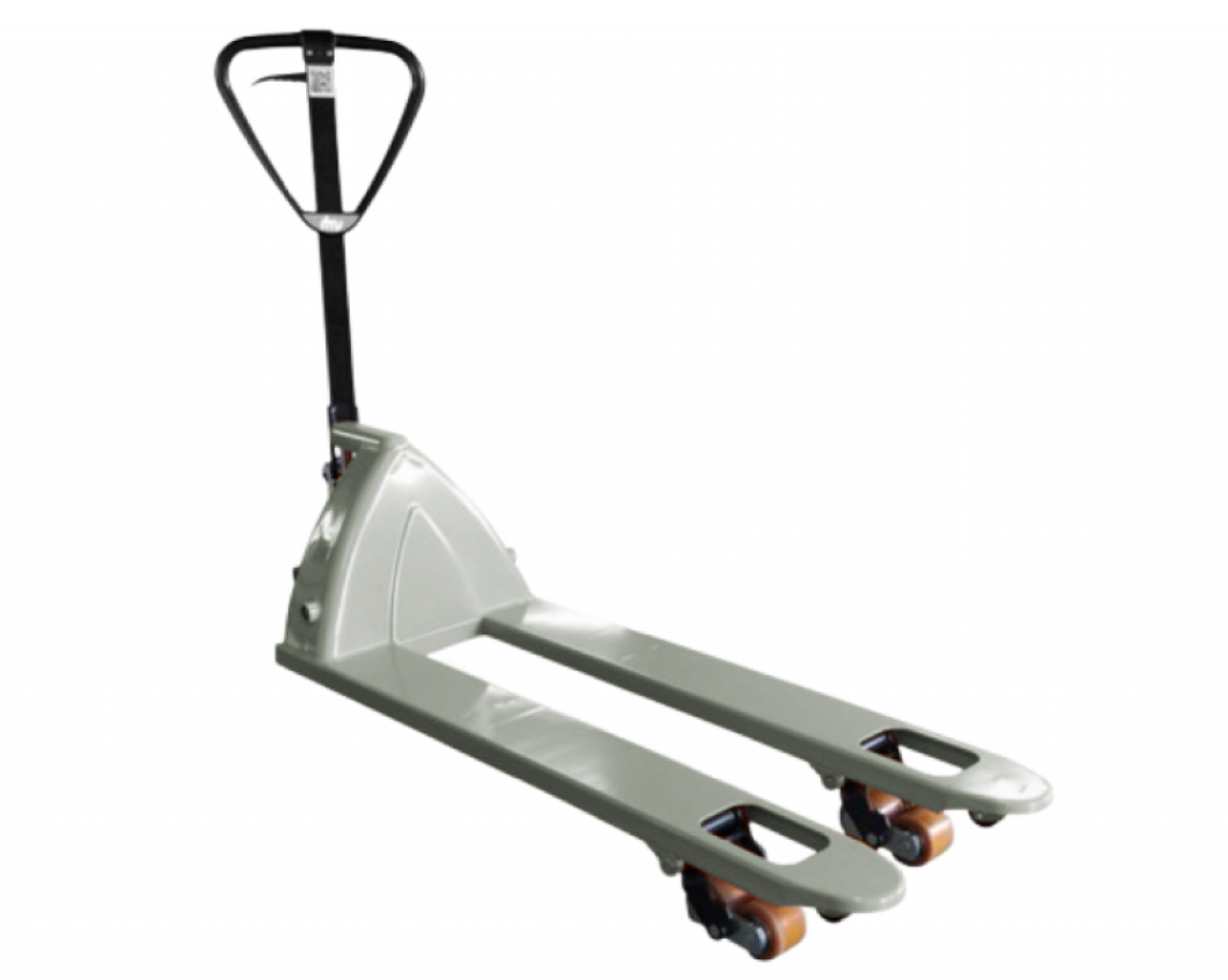

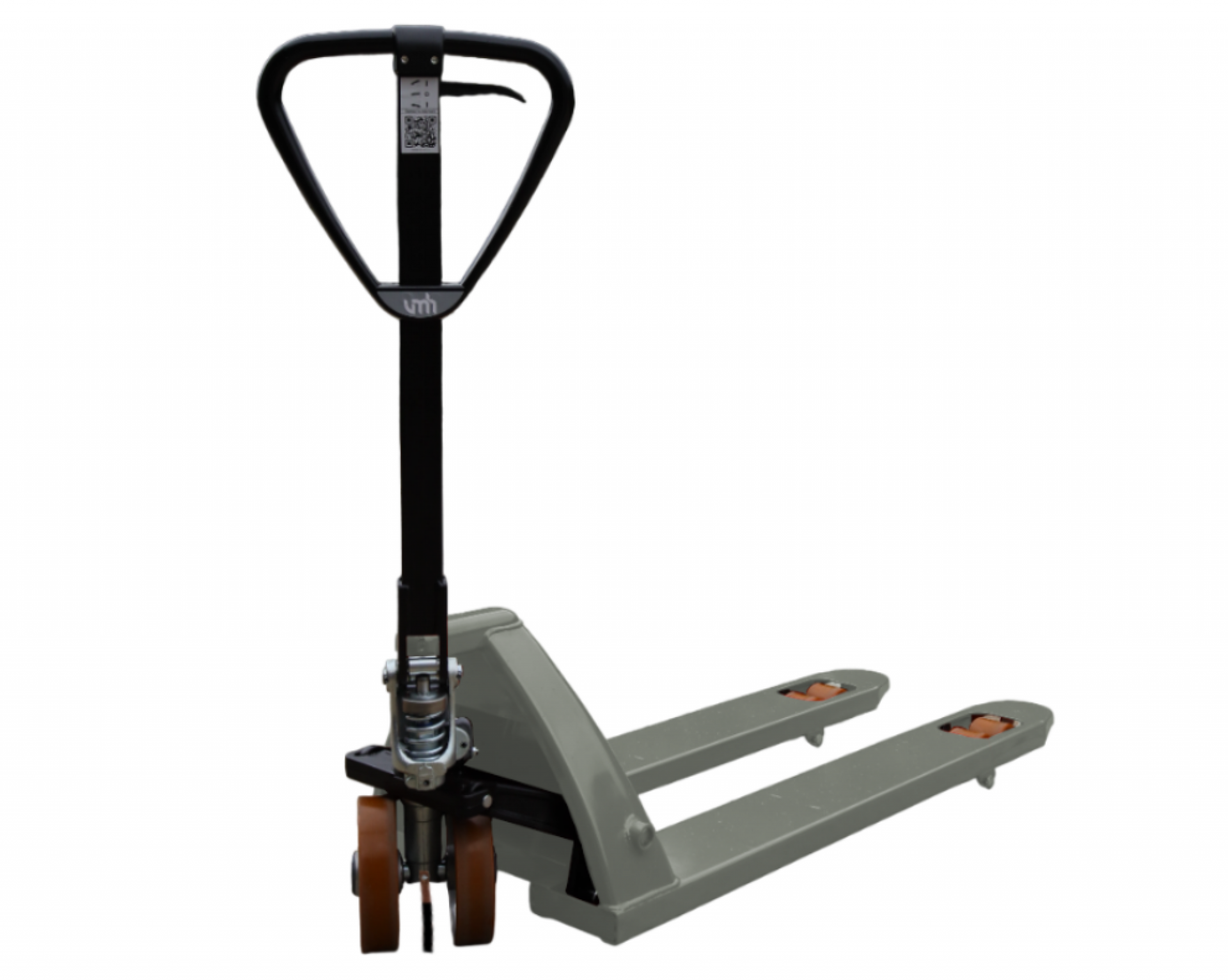

Hand pallet truck with ESD protection
- Pallet truck in ESD design with hydraulic lift and load capacity of 2.3 or 3.0 t
- Specialized equipment for areas with strict requirements for electrostatic safety
- A combination of antistatic materials ensures maximum protection against electrostatic discharges
- The steel structure treated with antistatic paint RAL 7016 (104Ώ < R < 107Ώ) ensures durability and long service life
- The equipment is equipped with a grounding belt for electrostatic discharge

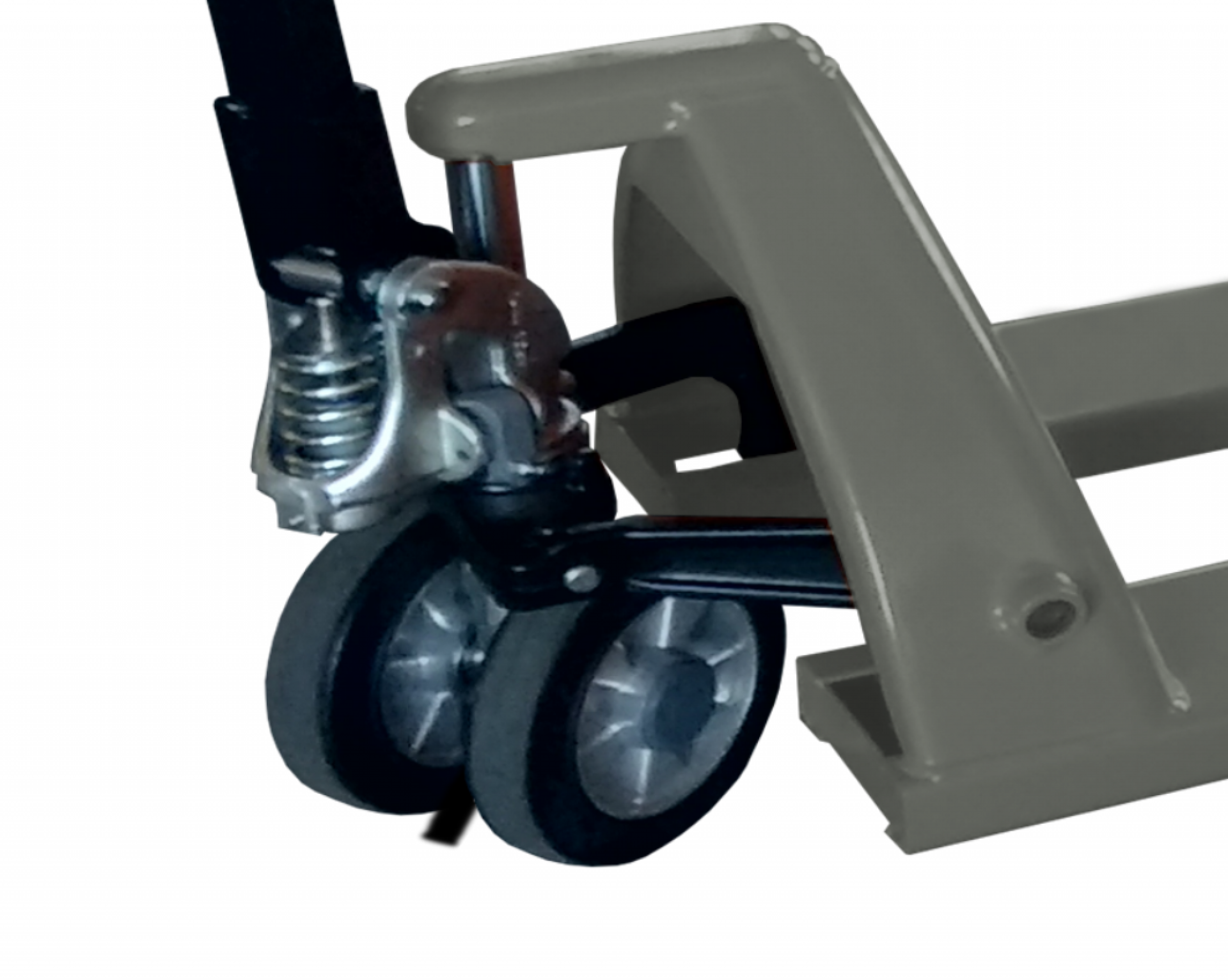

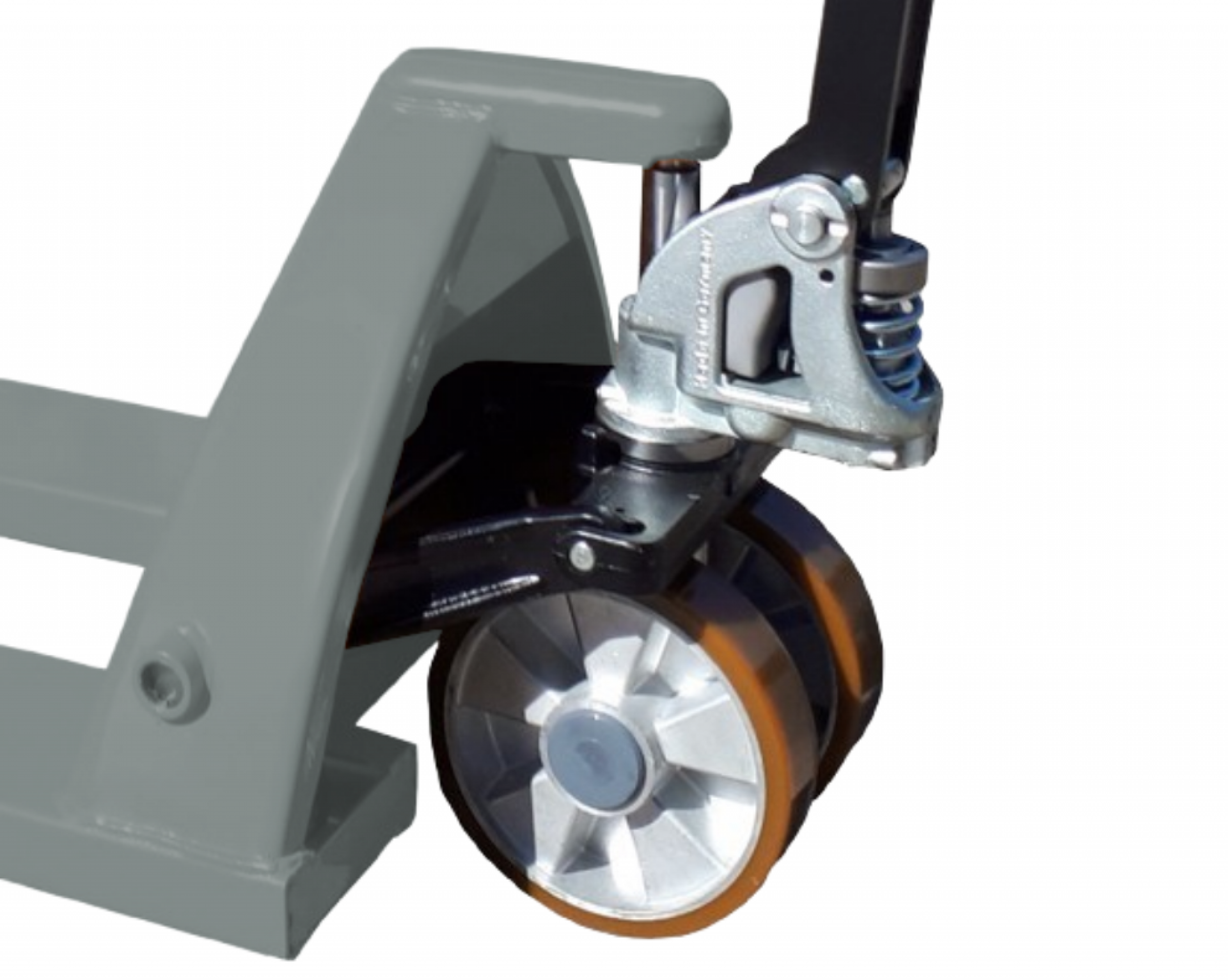

- There are two types of front wheels available, rubber with resistance (R < 104Ώ) for direct discharge of electrostatic charge and polyurethane with resistance (104Ώ < R < 107Ώ) for controlled dispersion of electrostatic charge

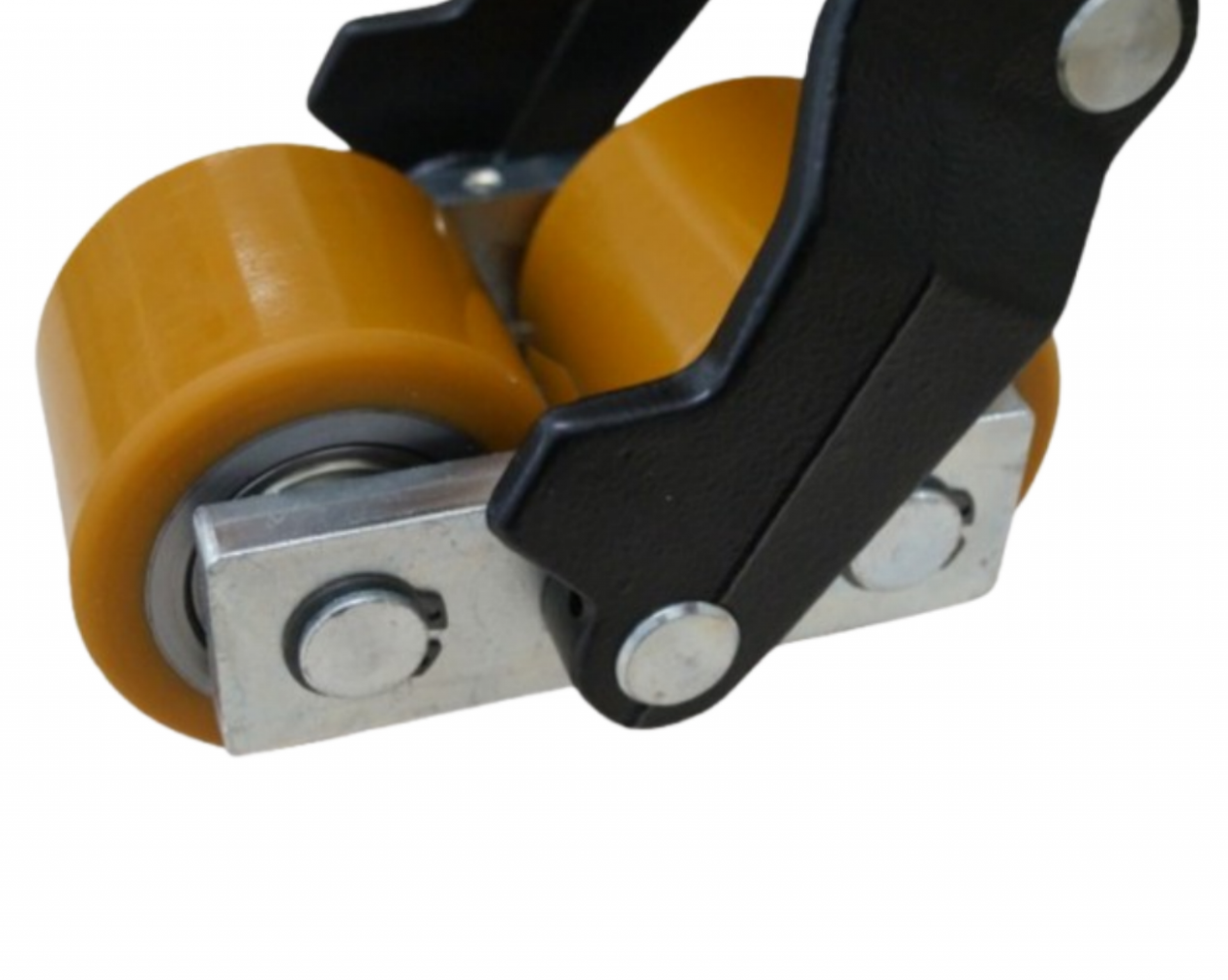

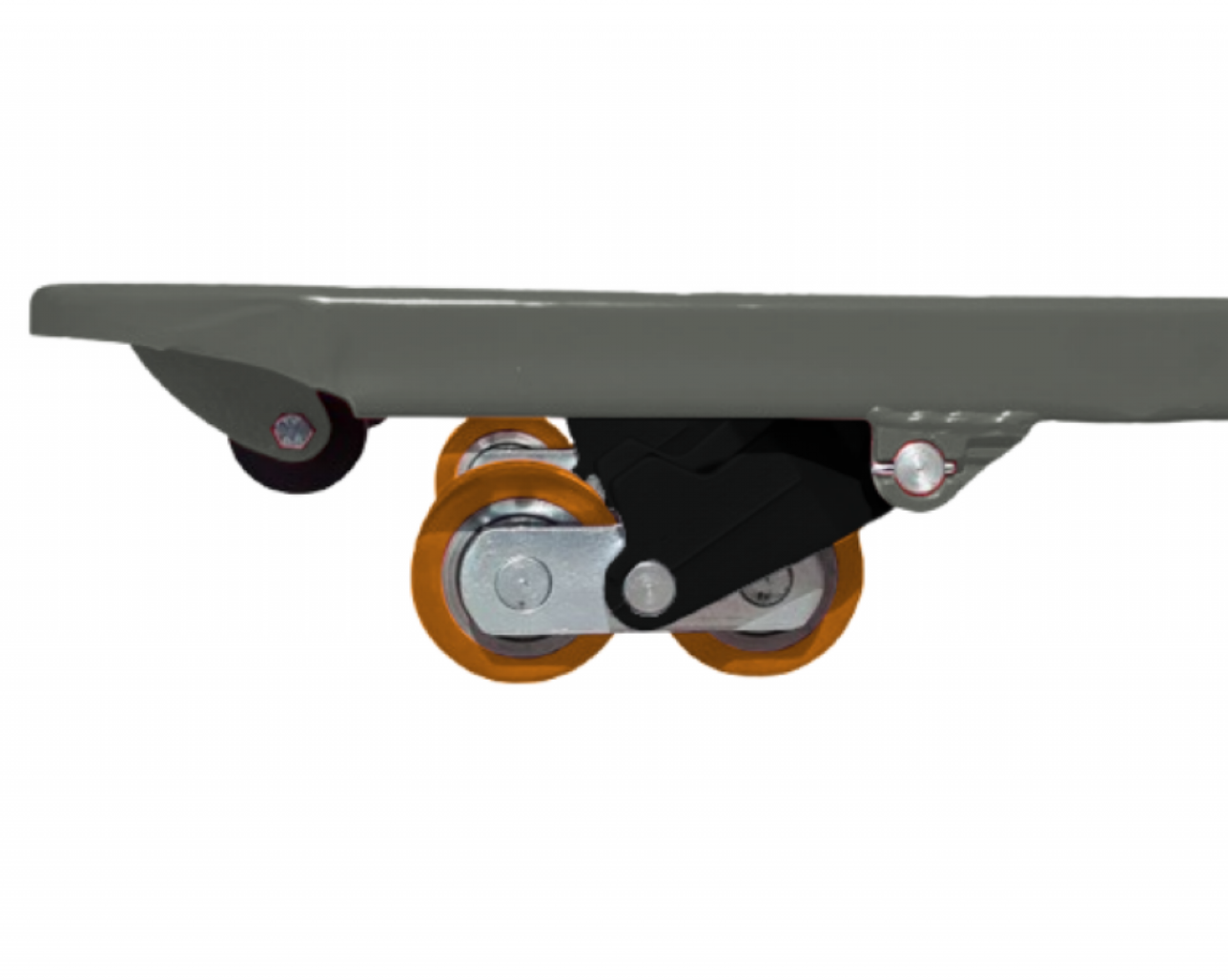

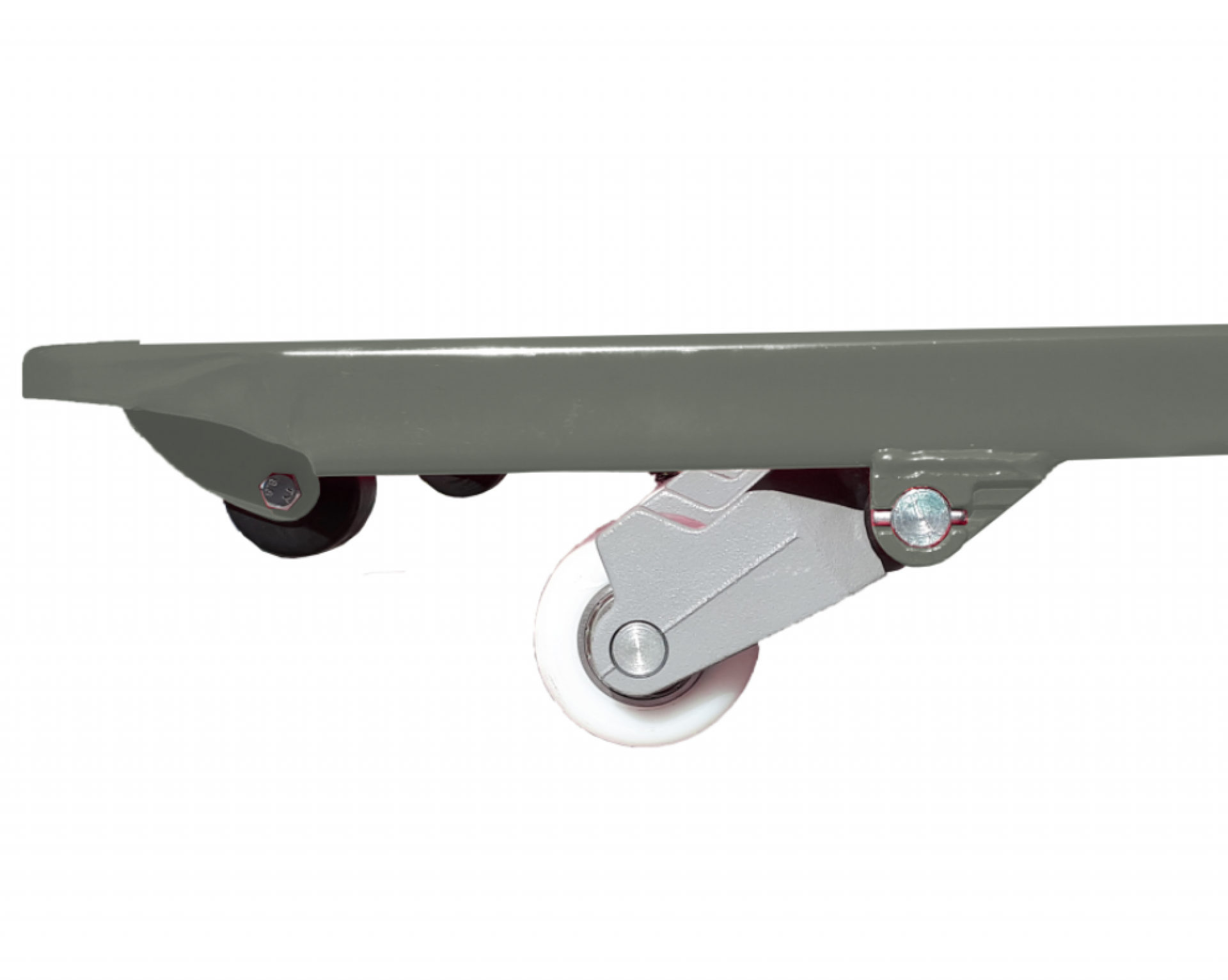

- The tandem design of the wheels on the skids ensures easier and smoother passage over unevenness
- For type FK2300, a version with a quick lift is possible
- With the quick lift function, lifting the load is possible after only two full strokes and maximum stroke is reached after five full strokes
Options:
- Special measurements
- Quicklift
- Brake

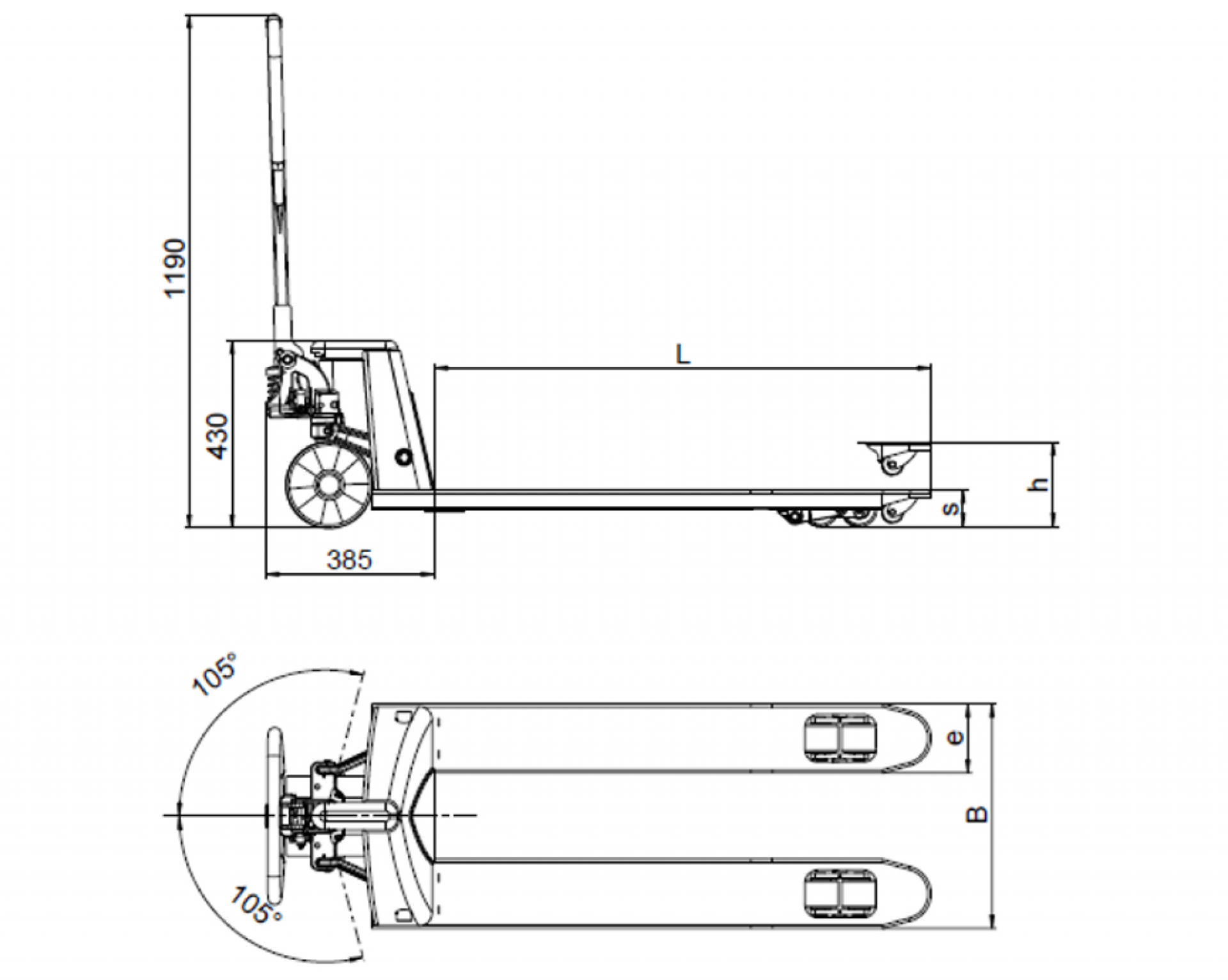

Technical data
| Type | FK2300-ESD | FK3000-ESD | |
|---|---|---|---|
| Capacity | 2300 kg | 3000 kg | |
| Lowered fork height | s | 85 mm | 85 mm |
| Lift | h | 195 mm | 195 mm |
| Length of forks | L | 1150 mm | 1150 mm |
| Width of fork | e | 160 mm | 160 mm |
| Width over forks | B | 520 mm | 520 mm |
| Steering wheels | EVG / APA - Ø 200 mm | APA - Ø 200 mm | |

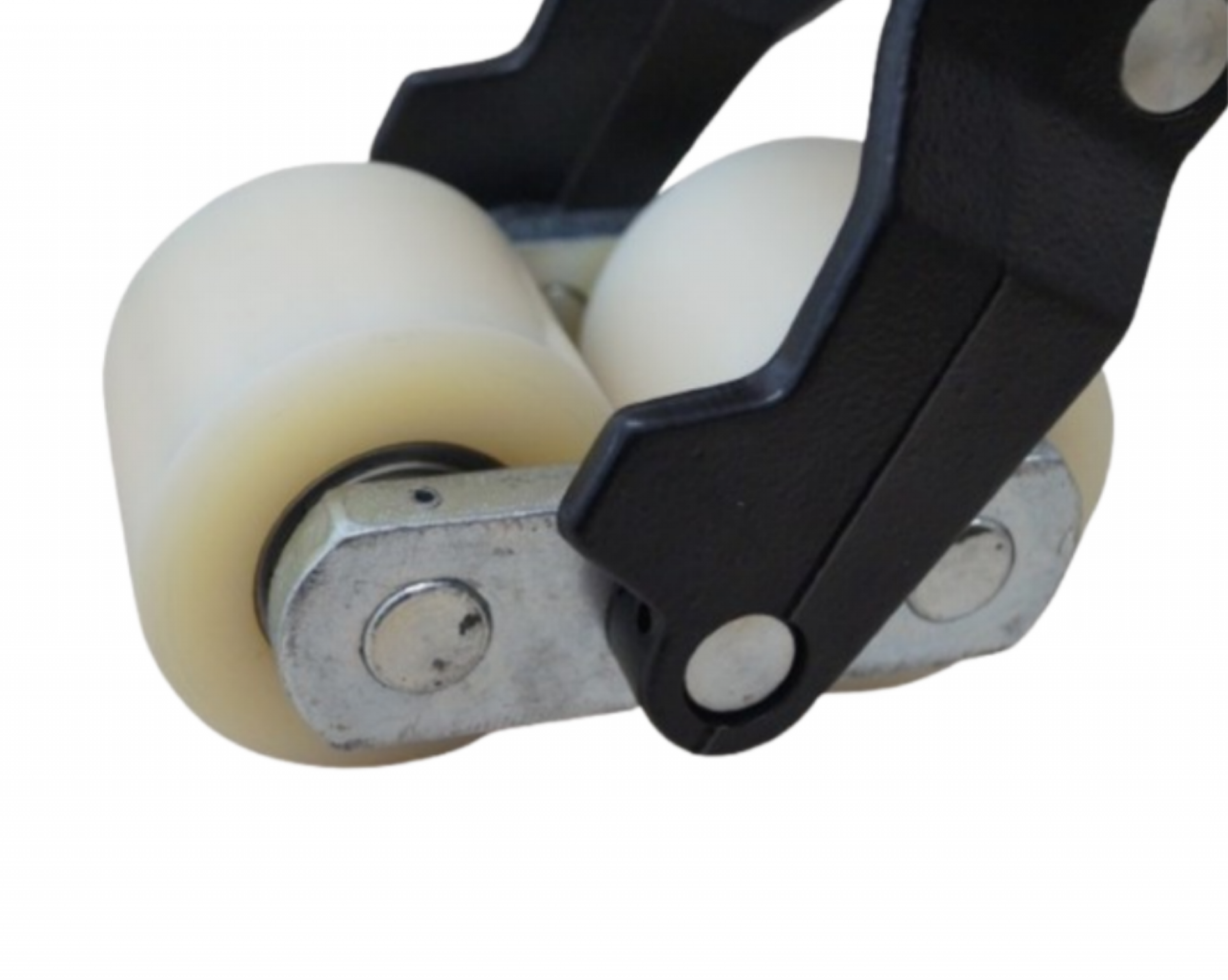

| Load wheels | N / P - Ø 84 mm | ||
| Tandem load wheels | NT / PT - Ø 84 mm | NT / PT - Ø 84 mm | |
| Grounding belt | Yes | Yes | |
| Colour | RAL 7016* | RAL 7016* | |
| Weight | 70 kg | 75 kg |
N=Nylon P=Polyurethane T=Tandem EVG=Electrically conductive rubber (R < 104Ώ) APA=Antistatic polyurethane on an aluminum core (104Ώ < R < 107Ώ) *Antistatic paint (104Ώ < R < 107Ώ)
